CODE
GLAZED PORCELAIN / GLAZED CERAMIC WALL TILE
Description
The integration of light and shadow effects create dimensional vertical surfaces using simple shapes that shifts and transform. Trapezoid-shaped floor tiles allow for unique and interesting compositions. Code's™ minimal and neutral forms offer endless design opportunities for every surface.
Technical Specifications
| Shape |
High & 3D (Wall Only) |
Smooth & Line (Wall Only) |
Trapezoid (Floor & Wall) |
| Nominal Size (in.) |
Hex High/3D: 6 x 7 Wedge High/3D: 5 x 6 |
Hex Smooth/Line: 6 x 7 Wedge Smooth: 5 x 6 |
4 x 9 |
| Edge Detail | Pressed | Pressed | Pressed |
| Finish | Satin/Gloss | Satin | Satin |
| Faces | 1 | 1 | 1 |
| Thickness (in.)* | 7/8 | 5/16 | 5/16 |
| Lbs/PC |
Hex High/3D: .88 Wedge: .66 |
Hex Smooth: .44 Wedge Smooth: .44 |
.88 |
|
Grout Joint Recommendation (in.) |
1/8 | 1/8 | 3/16 |
* Tile thickness could vary based on size. Larger format tiles will have a higher thickness.
Sizes and Trim

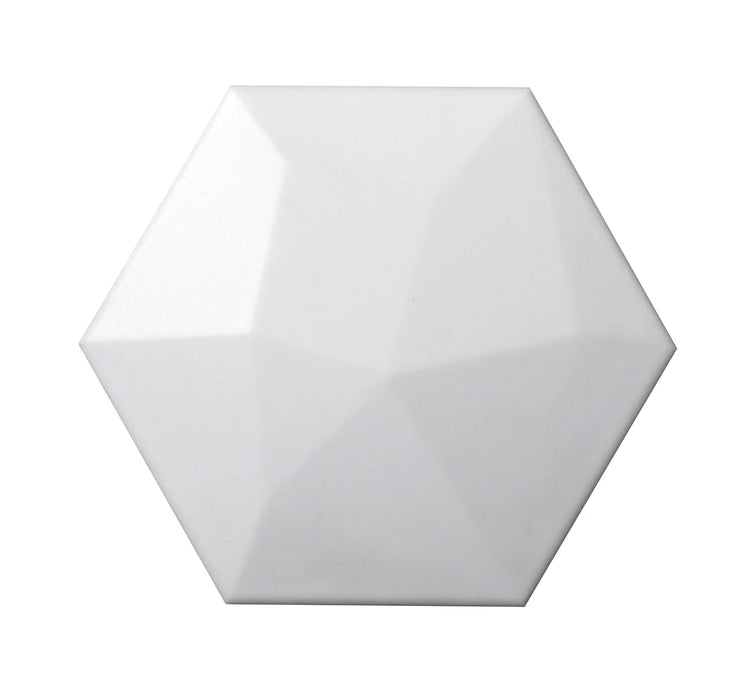

6” x 7” Hexagon 5" x 6" Wedge 4" x 9" Trapezoid
